Filter Cartridge for Ceramic Filter
High dirt holding capacity and excellent flow performance
Suitable for the removal of colloids, lipids, protein aggregates and particles
Product Details
Features
● Combination of highly adsorptive and mechanical retention for effective clarification
● High dirt holding capacity and excellent flow performance
● Suitable for the removal of colloids, lipids, protein aggregates and particles
● Glass fiber prefilter layer is available for higher dirt holding capacity and longer service life
● Good oil resistance, wide chemical compatibility
● Economical and ideal choice for protection of final membrane filters
Application
Clarification of wine, spirits, fruit juices, soft drinks or other beverages
● Removal of colloids, lipids and protein aggregates in cell cultures,
● Ophthalmic, LVPs, serum and other media in bio-pharmaceutical industry
● Pre-filtration of fine chemicals, as reagents, inks and paints
● Kinds of lubricating oil and hydraulic oil clarification
● Oil and other contaminants removal in air/gas filtration
Specification
Construction Materials | Filter Media | GF |
Support Layers | Polypropylene | |
Inner core | Polypropylene | |
Outer cage, End Cap | Polypropylene | |
Seal Method | Thermal Bonding, No Adhesives | |
O-rings/ Gaskets | Silicone/EPDM/Viton/PTFE/Nitrile | |
Technical Data | Micron Rating | 0.45, 1.0, 3.0,5.0, 10 um |
Operating Temperature | Normal <60℃ (140 oF) | |
Normal Flow Direction pressure | 4.2 bar (60.9 psi) at 25℃ (77℉ ) | |
Reverse Flow Direction pressure | 2.1 bar (30.5 psi) at 25℃ (77℉ ) | |
pH Value Compatibility | 1-13 | |
Sterilization | In-line steam sterilization is Not recommended, Flush with hot water at 82℃ (180 ℉ ) for 30 minutes | |
Cartridge Size | Outer Diameter | 69 mm(2.75’’) |
Inner diameter | 33 mm(1.30’’) | |
Length(based on DOE end cap) | 10’’, 20’’, 30’’, 40’’ | |
Filtration Area(m2) | 0.65 m2/10’’ | |
Biosecurity | Endotoxin | <0.25 EU/ml |
Extractable | ≤30 mg/10’’ | |
Filtration efficiency | ≥90% | |
Hot Tags: filter cartridge for ceramic filter, China, manufacturers, suppliers, factory, price, buy, cheap, quotation, made in China
Previous:
Ceramic Friction Ring
Next:

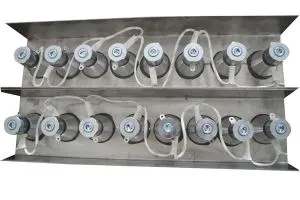

Ultrasonic Vibration Box
