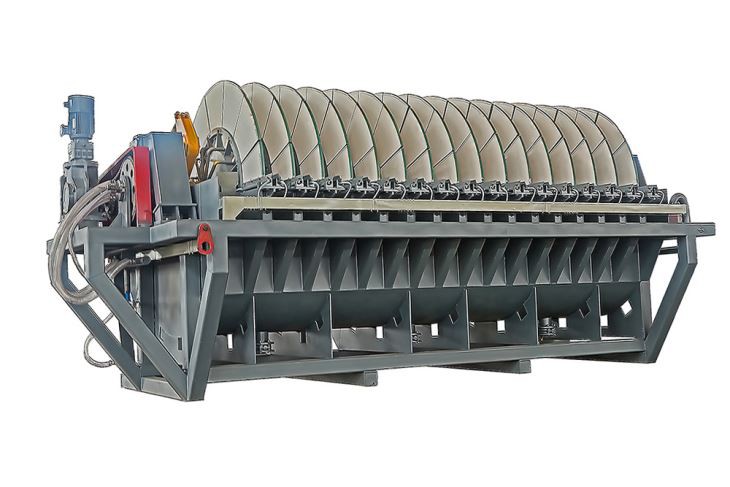

2銕?Filter Area Automatic Ceramic Filter
Eed granularity: 100 mesh - 300 mesh (best granularity: - 200 mesh accounts for 75%)
Slurry concentration: 30% - 45%.
Production capacity: 200 kg/h-40 000 kg/h
Applicable materials: iron concentrate, iron tailings, copper concentrate, copp
Eed granularity: 100 mesh - 300 mesh (best granularity: - 200 mesh accounts for 75%)
Slurry concentration: 30% - 45%.
Production capacity: 200 kg/h-40 000 kg/h
Applicable materials: iron concentrate, iron tailings, copper concentrate, copp
Equipment Composition
鈼?Principal axis with several sets of ceramic disks
鈼?Distribution head with self-coupling switching effect of suction and backwash
鈼?Agitator for preventing solid precipitation
鈼?Ceramic Scraper for Eliminating Solid Adsorption by ceramic disks
鈼?Backwash system from inside to outside for the abdominal cavity of ceramic disks
鈼?Trough body and operation program control system to maintain a certain slurry level
Product Parameters
Model | Filter area/circle銕?/p> | Number of turns | Umber of filter units/machine |
2 | 12 | 24 | |
LH-4 | Total disks | total weight of the machine锛坘g锛?/p> | Total power of the machine锛坘w锛?/p> |
1500 | 12.76 | 2550/2438/2086 | |
Model | Filter area/circle銕?/p> | Number of turns | Umber of filter units/machine |
2 | 12 | 36 | |
LH-6 | Total disks | total weight of the machine锛坘g锛?/p> | Total power of the machine锛坘w锛?/p> |
1800 | 17.08 | 2800/2438/2086 | |
Model | Filter area/circle銕?/p> | Number of turns | Umber of filter units/machine |
2 | 12 | 48 | |
LH-8 | Total disks | total weight of the machine锛坘g锛?/p> | Total power of the machine锛坘w锛?/p> |
2200 | 17.3 | 3505/2438/2086 |
Packing and delivery
Packing/Loading
1. Vacuum disc filter spare parts would be packed in wooden boxes to avoid broken.
2. Vacuum disc filter are fixed and loaded in container directly.
Shipping
1. Vacuum disc filter are shipped in 40'HQ Containers by sea.
2. Vacuum disc filter also shipped by air if customers request.
