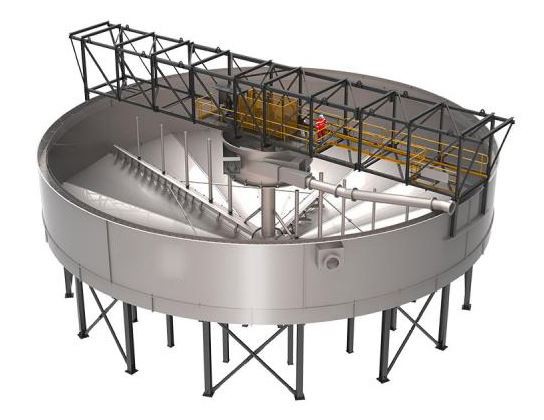

24m Environment Thickener

High-efficiency thickener is a thickening equipment with high concentration efficiency, large processing capacity, and high degree of automation in rake thickeners. Compared with conventional thickeners, this thickener has huge advantages.

Add flocculant to increase the particle size of the settled solid particles, thus speeding up the settling speed; increase the degassing tank to prevent the solid particles from adhering to the air bubbles; a receiving tray is set to move the ore tube down to make the fed slurry uniform and stable Falling, effectively preventing the occurrence of flowering; the unit processing capacity is 4-9 times that of conventional thickeners, and based on the unit processing capacity, it saves 30% of energy consumption compared to traditional thickeners; a flocculant addition system and flocculant addition can be additionally provided Automatic control system and high-efficiency thickener automatic control system.

Main Features

1. The high-efficiency thickener has a large processing capacity. Under the same operating conditions, the processing capacity of large or medium-sized hydraulic center-driven high-efficiency thickeners is 4-9 times that of ordinary thickeners. Generally, the concentration of tailings in the dressing plant is relatively large. The equipment is suitable for various tailings enrichment operations;

2. The concentration index is excellent. Although the manufacturing and operating costs are higher than conventional concentration equipment, the energy consumption of this equipment is low. In addition, the addition of flocculants can obtain a high concentration of underflow during the concentration process. On the contrary, it saves costs;

3. The investment is small, and the hydraulic center transmission high-efficiency thickener with the same specifications saves about 30% on infrastructure investment compared with ordinary thickeners.

4. Convenient maintenance. The rake frame and scraping device of the ordinary thickener are an integrated steel frame structure. If the scraping device fails and needs to be repaired, the slurry in the thickening tank must be shut down and drained. The process is not only troublesome but also repaired. Time-consuming and labor-intensive. Due to the adaptable lifting structure, the maintenance of the hydraulic center-driven high-efficiency thickener is very convenient, and the scraping device or the harrow frame can be lifted out separately for maintenance and replacement.

5. The safety device is reliable and adjustable. The drive part of this device is equipped with a PLC automatic pressure sensor. When the load of the scraping device is too large, it can automatically raise the rake, thereby reducing the load. While the equipment is safe to use, it also improves the operating efficiency of the equipment, making it easier to operate in actual production.

6. The underflow concentration is adjustable. This equipment has a very high degree of automation. It can adjust the discharge concentration according to the underflow concentration. On the one hand, it guarantees the underflow concentration and reduces solid particles in the overflow. Therefore, its product index Quite stable.
